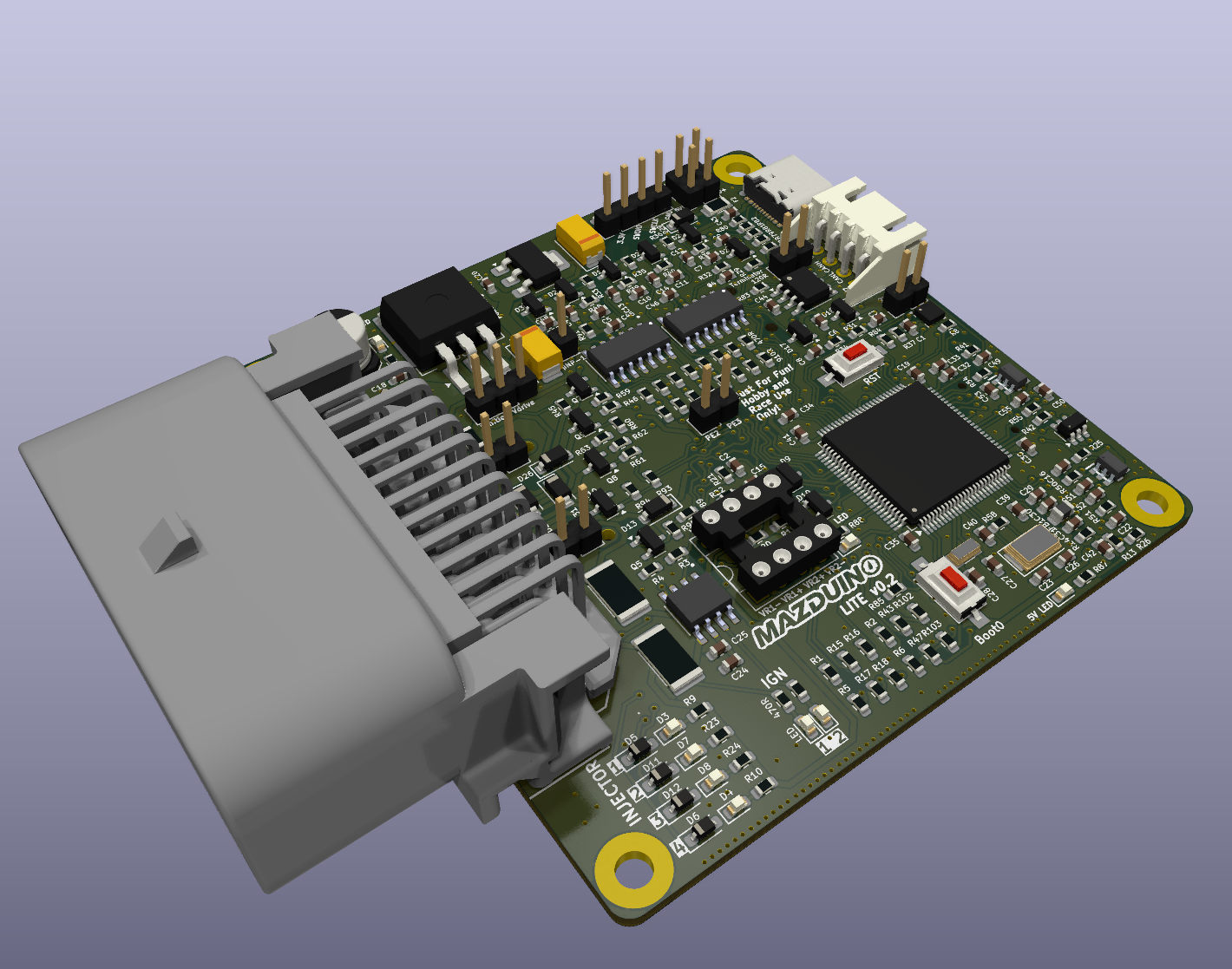

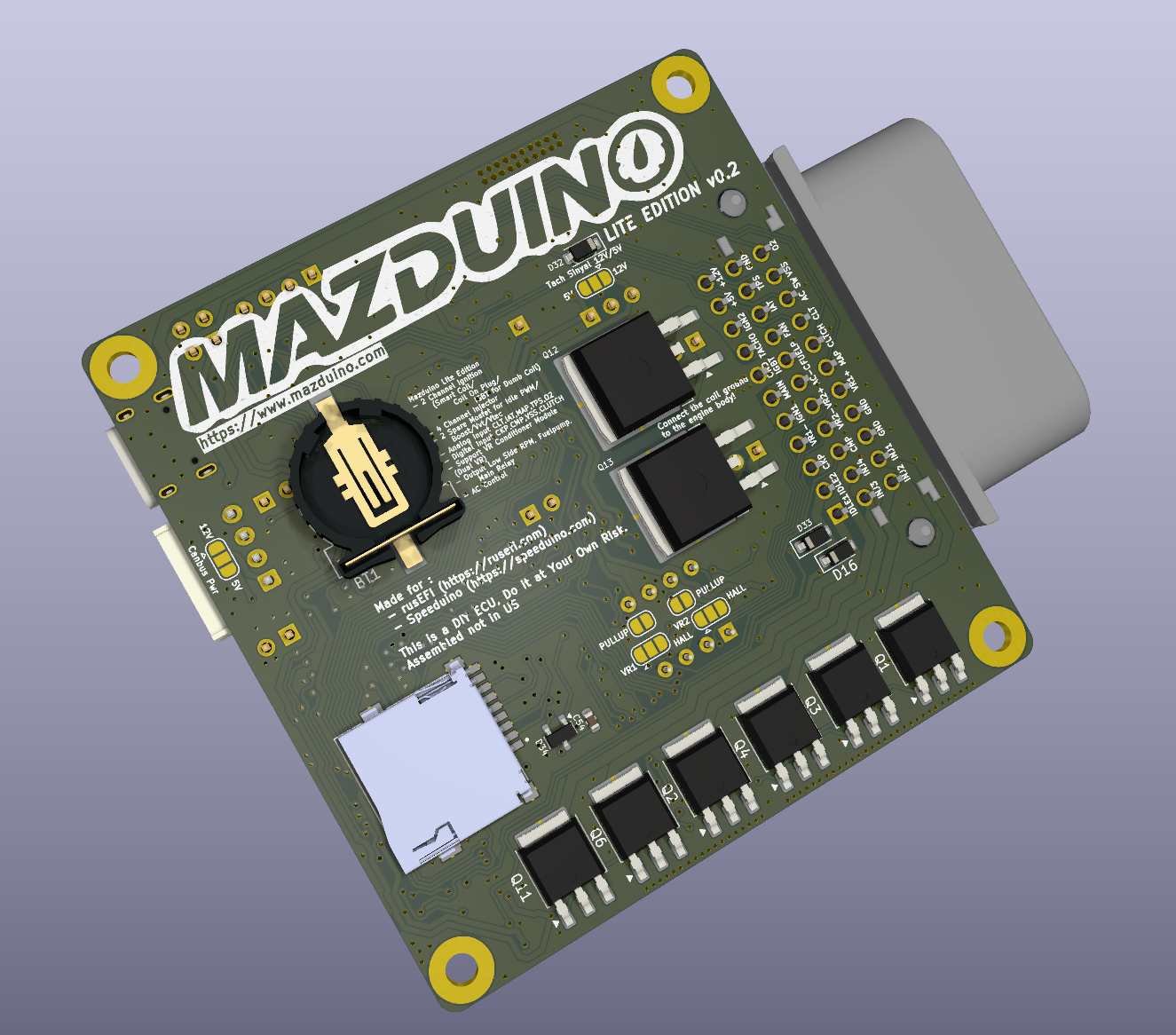

Mazduino Lite Edition is a compact ECU designed for 4-cylinder engines with wasted spark ignition or 1-2 cylinder motorcycles with individual ignition control. All configurations support full sequential injection. This lightweight version provides essential engine control features in a smaller form factor.
Mazduino Lite is compatible with firmware from rusEFI and can also be used with Speeduino.
For tuning and configuration, you can use the Tuner Studio software.
- Board Size: 72mm x 74.7mm
- Connector: 33-pin Automotive Connector
- Target Application:
- 4-cylinder engines with full sequential injection and wasted spark ignition
- 1-cylinder motorcycles with sequential injection and individual ignition control
- 2-cylinder motorcycles with sequential injection and individual ignition control (Smart Coil/IGBT)
 |
 |
 |
- Processor/MCU: STM32F407
- 2 Channel Ignition - Wasted Spark (Smart Coil/Coil On Plug/IGBT for Dumb Coil)
- 4 Channel Injector outputs - Full Sequential Injection
- 2 Spare MOSFET for Idle PWM/Boost/VVT/VTEC control
- Analog Inputs: CLT, IAT, MAP, TPS, O2 sensors
- Internal Baro Pressure Sensor: Built-in barometric pressure sensor (v0.2+)
- Digital Inputs: CKP, CMP, VSS, Clutch
- VR Conditioner Module Support (Dual VR)
- Low Side Outputs: RPM, FAN, Fuel Pump, Main Relay, AC Compressor
- Micro SD Card Support for data logging via SPI
- CANbus Communication support
- Compact Design - Smaller footprint for space-constrained applications
- Critical IGBT Fix: Resolved design error in v0.1 that could prevent IGBT functionality
- Footprint Change: Updated IGBT footprint from Dpak 252 to d2pak 262 (commonly used for IGBT)
- Added Internal Baro Pressure Sensor: Built-in barometric pressure sensor for improved engine management
- Design validation and schematic corrections
- Initial design and layout
- Compact 72mm x 74.7mm form factor
- 33-pin automotive connector
- 4-cylinder full sequential injection with wasted spark ignition
- 2-channel ignition and 4-channel injection
- Essential analog and digital inputs
- VR conditioner support
- CAN bus and SD card support
⚠️ Note: Contains IGBT design issue for dumb coils (resolved in v0.2)- ✅ Still usable: Works perfectly with Coil on Plug (CoP) or Smart Coil configurations
This documentation will be updated as soon as possible... please wait.
