MalStat is a static PE malware triage toolkit for Windows executables. It extracts structural features from EXE, DLL, and SYS files, applies a calibrated machine learning classifier, and produces explainable JSON and HTML reports without executing the sample.

This repository is the clean public runtime repository for the MalStat project.

It intentionally contains:

• the canonical source code under src/ and scripts/;
• the minimal runtime model bundle under models/;
• the runtime template and configuration files required for inference;
• the training and evaluation code paths for users who provide their own local datasets.

It intentionally does not contain private datasets, training/evaluation outputs, or the separate author-side coursework documentation folder that lives outside this repository.

• Static analysis of Windows PE files without running them.
• Feature extraction across file, header, section, import, string, resource, opcode, and optional reputation layers.
• Calibrated LightGBM inference with canonical model artifacts already included.
• JSON and HTML reporting for single-file and batch workflows.
• Reproducible retraining once you provide a local clean training subset.

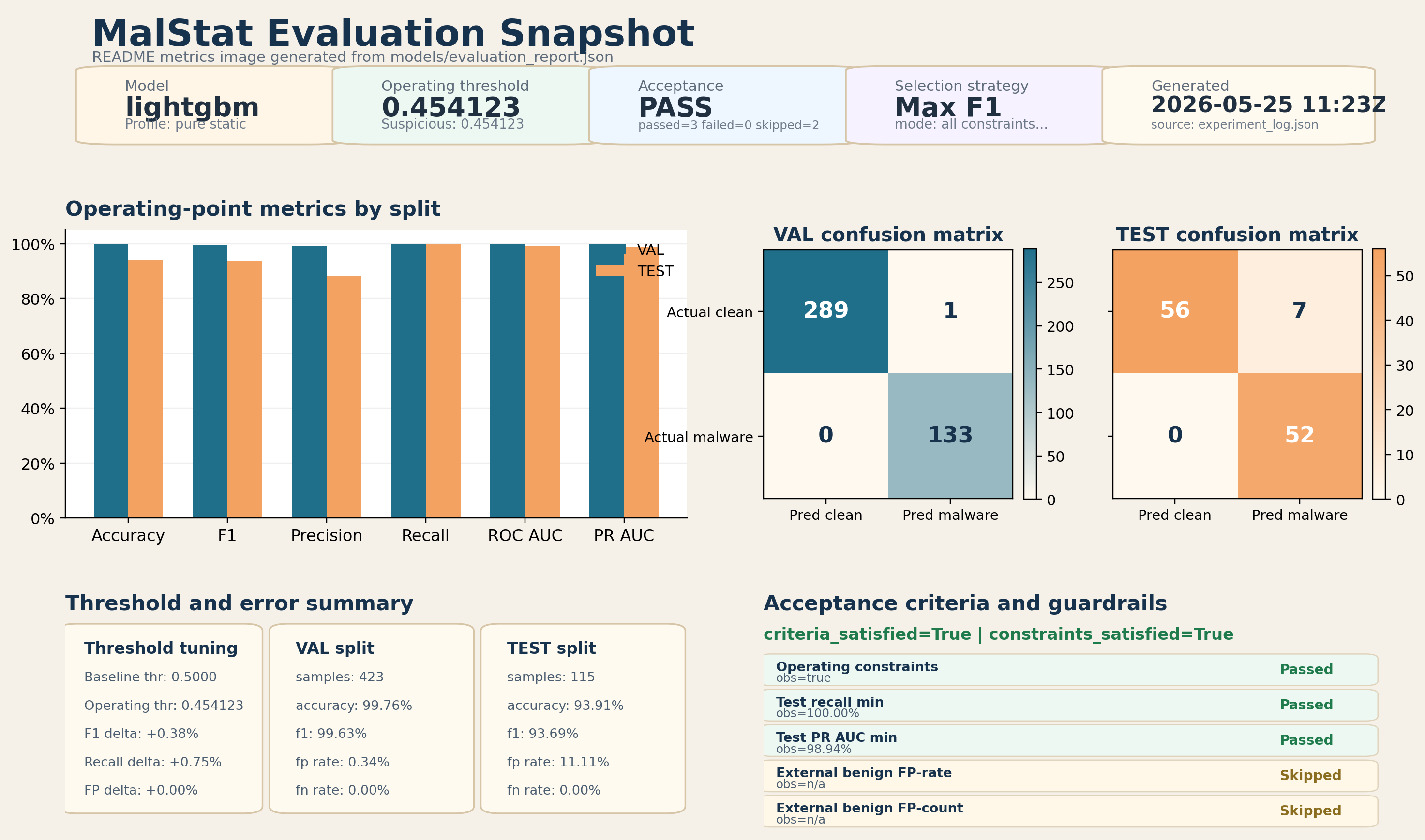

• Evaluation tooling for threshold selection, error review, and external holdout checks against local artifacts.

.
|- configs/                 Runtime and evaluation configuration
|- data/                    Local ignored workspace for private datasets and generated dataset artifacts
|- models/                  Canonical runtime model bundle only
|- scripts/                 CLI entry points for analysis, dataset building, training, and evaluation
|- src/                     Core project implementation
|- templates/               HTML report template(s)
|- tests/                   Minimal smoke tests for CI
|- CHANGELOG.md             Release notes
|- Dockerfile               Reproducible container runtime
|- README.md                This document
|- VERSION                  Repository release version
`- requirements.txt         Exact tested dependency set

• scripts/analyze_file.py analyzes one file.
• scripts/analyze_directory.py analyzes a directory tree.

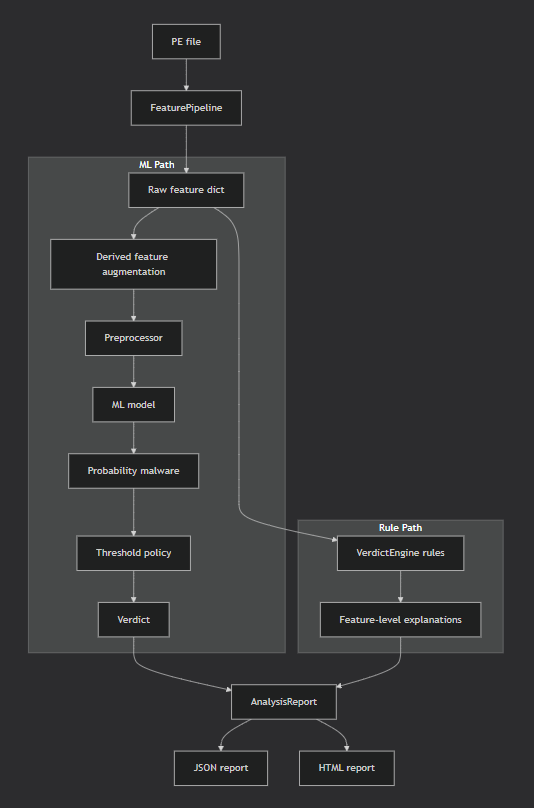

• src/inference/ contains the runtime analysis path.
• src/reporting/ renders the explainable output payloads.

• scripts/build_dataset.py extracts and appends rows into aggregate dataset stores.
• scripts/export_clean_training_subset.py exports the clean supervised subset.
• scripts/train_model.py trains the canonical classifier.
• scripts/evaluate_model.py builds detailed evaluation reports.
• src/training/ and src/evaluation/ contain the training and evaluation logic.

• models/calibrated_model.pkl is the canonical shipped classifier.
• models/preprocessor.pkl is the canonical feature preprocessor.
• models/feature_columns.json fixes the expected feature order.

• reports/ is for generated analysis outputs and is intentionally gitignored.
• data/ is a local working area for private datasets and exported training subsets and is intentionally gitignored.
• non-runtime files under models/ such as experiment logs, evaluation reports, prediction tables, and best snapshots are intentionally gitignored.

• Python 3.13.x
• pip and venv
• A platform supported by the pinned wheels in requirements.txt
• Enough disk space for model artifacts, generated reports, and optional dataset growth

This project analyzes Windows PE files, but the tooling itself can be run from a non-Windows host because it performs static parsing instead of sample execution.

python -m venv .venv
.\.venv\Scripts\Activate.ps1
python -m pip install --upgrade pip setuptools wheel
python -m pip install -r requirements.txt

python3 -m venv .venv
source .venv/bin/activate
python -m pip install --upgrade pip setuptools wheel
python -m pip install -r requirements.txt

python scripts/analyze_file.py --help
python scripts/analyze_directory.py --help
python scripts/train_model.py --help
python scripts/evaluate_model.py --help

Analyze a single file:

python scripts/analyze_file.py "C:\path\to\sample.exe"

Analyze a directory recursively:

python scripts/analyze_directory.py "C:\path\to\samples" --recursive --no-html

By default, generated outputs are written under reports/, which is ignored by Git on purpose. VirusTotal lookups are disabled by default. Add --enable-virustotal only when you explicitly want remote hash reputation lookups and have configured VT_API_KEY in the environment or .env.

python scripts/analyze_file.py "C:\path\to\sample.exe" --json-out sample.analysis.json --html-out sample.analysis.html

python scripts/analyze_directory.py "C:\path\to\samples" --recursive --output-root reports\batch_analysis\run01

These dataset and training workflows require a private local dataset workspace under data/; they are not part of the public runtime bundle.

python scripts/build_dataset.py "C:\path\to\samples" --source manual --label 0 --label-confidence high

python scripts/export_clean_training_subset.py

python scripts/train_model.py

python scripts/evaluate_model.py

The repository works without the tools below. Install them only if you need the associated workflow.

FLOSS improves string extraction for obfuscated samples.

Preferred installation method on Windows:

1. Download the standalone executable from the official Mandiant FLARE-FLOSS releases page.
2. Put floss.exe on your PATH, or place it in a known tools directory and configure your environment accordingly.

Alternative Python package installation:

python -m pip install flare-floss

VirusTotal lookups are opt-in.

• Set VT_API_KEY in your environment or local .env file.
• Add --enable-virustotal to scripts/analyze_file.py, scripts/analyze_directory.py, scripts/main_extractor.py, scripts/build_dataset.py, or scripts/backfill_dataset_features.py when you explicitly want remote hash lookups.
• Leave the flag unset to keep analysis fully local.

Use SHAP only if you want additional post-hoc explanations for trained models.

python -m pip install shap

Use Plotly for richer interactive plots and Kaleido for static image export.

python -m pip install plotly kaleido

PyTorch is optional and only relevant if you add experimental neural baselines.

Use the official installer selector when possible because CPU and CUDA wheels differ by platform.

Typical CPU-only installation example:

python -m pip install torch --index-url https://download.pytorch.org/whl/cpu

• Canonical model version: 20260525T112232Z
• Canonical classifier: lightgbm
• Canonical operating threshold: 0.454123
• Published repository version: 0.1.0

This repository includes several reproducibility controls:

• requirements.txt pins the exact tested Python package versions.
• VERSION is the single source of truth for repository releases.
• CHANGELOG.md records repository-level release notes.
• Dockerfile provides a reproducible runtime container.
• GitHub Actions validates install, CLI help paths, smoke tests, and Docker buildability.

The repository ships with:

• CI workflow: installs pinned dependencies, runs smoke tests, validates CLI entry points, and builds the Docker image.
• Release workflow: validates that the Git tag matches VERSION, creates a source archive, and attaches it to the GitHub release.

Use this release process for clean GitHub releases:

1. Update the code and documentation.
2. Update VERSION using Semantic Versioning, for example 0.2.0.
3. Add the release notes to CHANGELOG.md.
4. Commit the release changes.
5. Tag the release as vX.Y.Z, for example v0.2.0.
6. Push the tag to trigger the release workflow.

• Keep requirements.txt pinned.
• Keep generated outputs out of version control.
• Update CHANGELOG.md for every release.
• Re-run the smoke tests after changing model artifacts.
• Treat models/calibrated_model.pkl, models/preprocessor.pkl, and models/feature_columns.json as the published runtime contract.

After a successful single-file run, you should expect:

• a JSON analysis payload;
• an optional HTML report;
• a printed summary in the terminal with the verdict, probability, threshold, model name, and model version.

MalStat is a static triage tool. It is designed to prioritize and explain suspicious PE files, not to behave like a full production antivirus engine with dynamic detonation, live telemetry, or enterprise response orchestration.
